Chefchaouen GT Project (10R80, 401A, PP, AE, NPP, MR, Recaro)

OP
OP
GrabThatBlue

GrabThatBlue

Well-Known Member
Joined
Jan 13, 2025
Threads
11
Messages
653
Reaction score
558
Location
Europe
Vehicle(s)
2024 Mustang GT Premium
I tried to install the rear fog light but it is not plug and play as they said.

I found out that the connector on the USA part has a metal pin on the right and the EU version has a metal pin on the left.

If the metal pin is not there, it is plug and play.
Ford only did this so that during the assembly they will not place the wrong part on the car.

So now I have to find out how to remove that metal pin and place it on the other side to make it plug and play.

Anyone knows how that works?
S650 Mustang Chefchaouen GT Project (10R80, 401A, PP, AE, NPP, MR, Recaro) IMG-20250406-WA0000
S650 Mustang Chefchaouen GT Project (10R80, 401A, PP, AE, NPP, MR, Recaro) IMG-20250406-WA0001
S650 Mustang Chefchaouen GT Project (10R80, 401A, PP, AE, NPP, MR, Recaro) 1743960635961-pc
Sponsored


Last edited:
OP
OP
GrabThatBlue

GrabThatBlue

Well-Known Member
Joined
Jan 13, 2025
Threads
11
Messages
653
Reaction score
558
Location
Europe
Vehicle(s)
2024 Mustang GT Premium
FINALLY!!

The first US to EU conversion on the internet!

I filmed the whole process and will upload it to my Youtube channel.

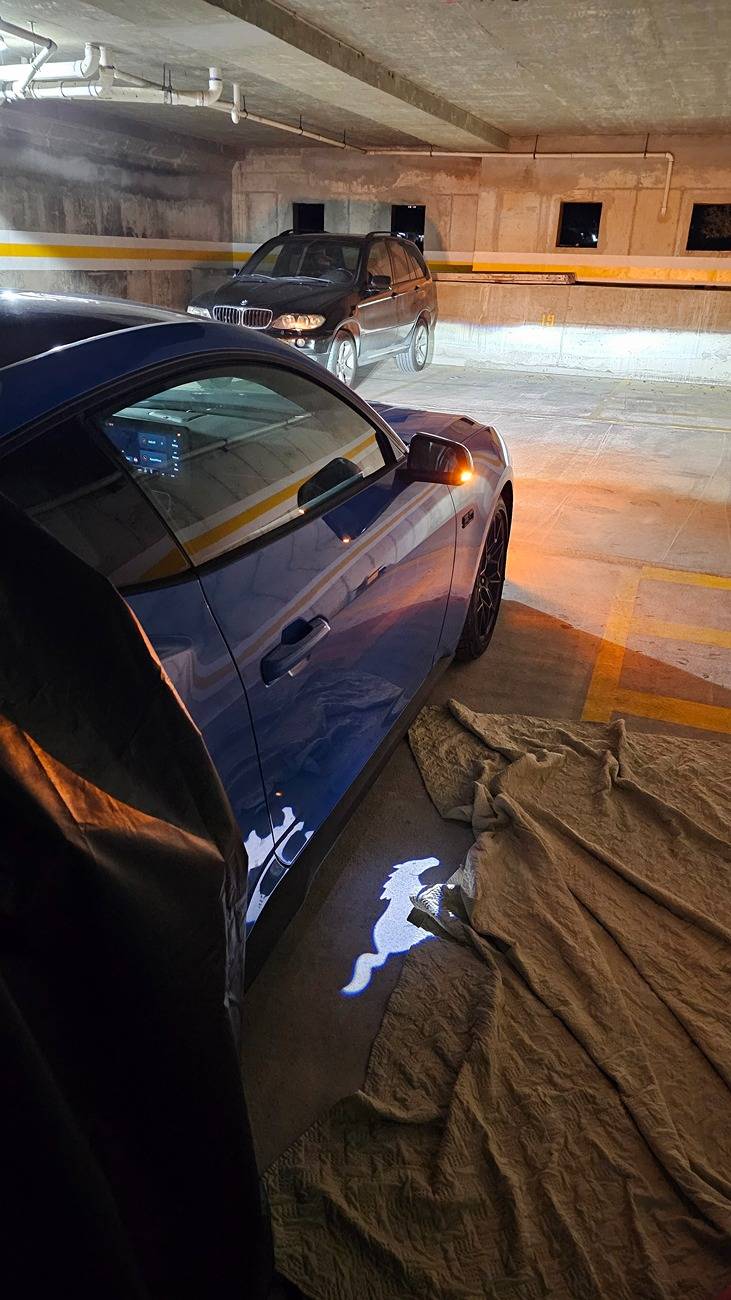

Side mirrors with turn signals INSTALLED! ✅️

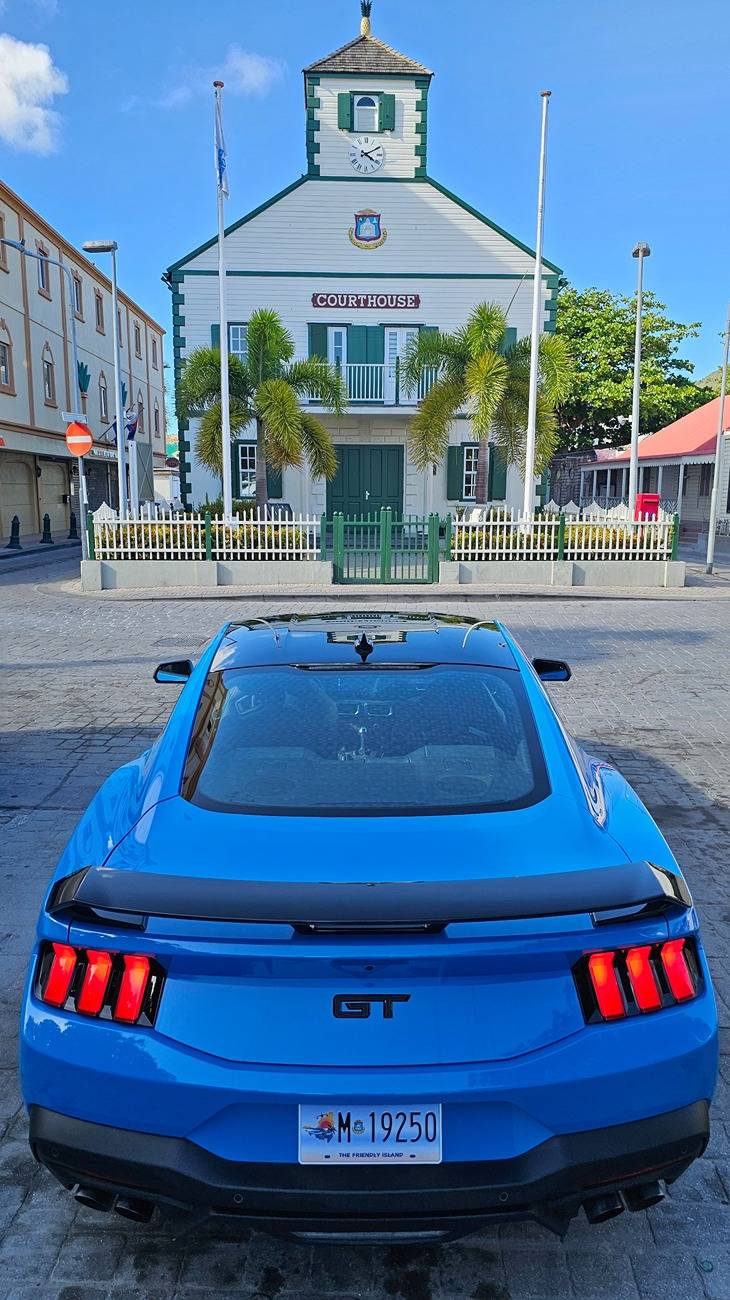

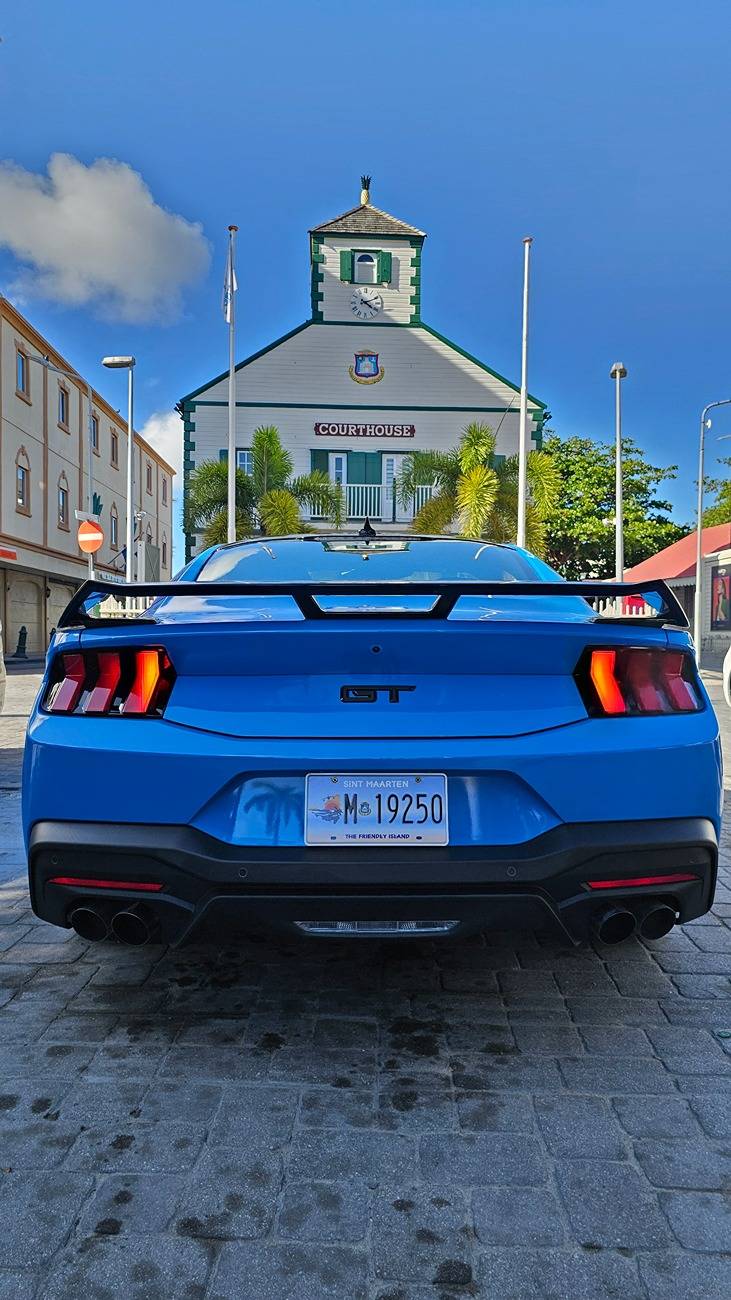

Rear fog light INSTALLED ✅️

- Side mirrors were plug and play. This was the biggest surprise because no one on the internet has ever done this conversion so I didn't know what to expect.

- Rear fog light I was told it was plug and play but that was not very true. The EU socket on the rear fog light was different than the USA socket, so I had to do a minor change to make it work.
Also I had to change some Forscan lines to make the fog light work. I'm super happy that the fog light yellow logo lights up on the dash when enabled.

My car is now 100% Europe proof and I can ship it to Europe and get it pass the inspection and have it registered without paying thousands of Dollars to garages that all told me that they had to add wires and all other lies just to charge more working hours.

@roket @rugedraw
@Sofa King thanks for assisting me during my research and making my life easier by providing diagrams and all other infoemation to make me more confident in what I was doing.

Before this conversion I never even holded a ratchet or a screwdriver in my hands. My fiest ever working with tools was doing this conversion on a car I spent my whole savings on LOL.

I bought all tools a few days before doing this conversion and I had no idea what those tools were for.

YouTube and help from the forum made me do my own European conversion.

May I say that I' proud of myself?

Thanks everybody!


S650 Mustang Chefchaouen GT Project (10R80, 401A, PP, AE, NPP, MR, Recaro) 20250328_225233


S650 Mustang Chefchaouen GT Project (10R80, 401A, PP, AE, NPP, MR, Recaro) 20250328_225327








S650 Mustang Chefchaouen GT Project (10R80, 401A, PP, AE, NPP, MR, Recaro) 20250406_172136

Last edited:

GK292

Active Member
Joined
Oct 24, 2023
Threads
5
Messages
37
Reaction score
21
Location
Austria
Vehicle(s)
Jeep Cherokee XJ 4.0
FINALLY!!

The first US to EU conversion on the internet!

I filmed the whole process and will upload it to my Youtube channel.

Side mirrors with turn signals INSTALLED! ✅️
Rear fog light INSTALLED ✅️

- Side mirrors were plug and play. This was the biggest surprise because no one on the internet has ever done this conversion so I didn't know what to expect.

- Rear fog light I was told it was plug and play but that was not very true. The EU socket on the rear fog light was different than the USA socket, so I had to do a minor change to make it work.
Also I had to change some Forscan lines to make the fog light work. I'm super happy that the fog light yellow logo lights up on the dash when enabled.

My car is now 100% Europe proof and I can ship it to Europe and get it pass the inspection and have it registered without paying thousands of Dollars to garages that all told me that they had to add wires and all other lies just to charge more working hours.

@roket @rugedraw
@Sofa King thanks for assisting me during my research and making my life easier by providing diagrams and all other infoemation to make me more confident in what I was doing.

Before this conversion I never even holded a ratchet or a screwdriver in my hands. My fiest ever working with tools was doing this conversion on a car I spent my whole savings on LOL.

I bought all tools a few days before doing this conversion and I had no idea what those tools were for.

YouTube and help from the forum made me do my own European conversion.

May I say that I' proud of myself?

Thanks everybody!












Congratulations, nice work!

I might the also change to the EU fog light myself.
Thanks for doing the pioneering!

OP
OP
GrabThatBlue

GrabThatBlue

Well-Known Member
Joined
Jan 13, 2025
Threads
11
Messages
653
Reaction score
558
Location
Europe
Vehicle(s)
2024 Mustang GT Premium
Congratulations, nice work!

I might the also change to the EU fog light myself.
Thanks for doing the pioneering!
No problem. How did you get your registered without doing the rear fog light?

Also another question. Your dealer tapped wired from your headlight to make the front turn signals blink at the same time. I think there was no tapping or altering in your wires needed to do that.

When you use the hazard light, all blinkers go on and off at the same time without being it sequential. If this is possible when using the hazard lights it's also possible when using the left or right turn signal. I guess this is just a matter of Forscan.



GK292

Active Member
Joined
Oct 24, 2023
Threads
5
Messages
37
Reaction score
21
Location
Austria
Vehicle(s)
Jeep Cherokee XJ 4.0
No problem. How did you get your registered without doing the rear fog light?

Also another question. Your dealer tapped wired from your headlight to make the front turn signals blink at the same time. I think there was no tapping or altering in your wires needed to do that.

When you use the hazard light, all blinkers go on and off at the same time without being it sequential. If this is possible when using the hazard lights it's also possible when using the left or right turn signal. I guess this is just a matter of Forscan.
My Mustang is registered in Switzerland, therefore no EU and not needed. But anyway a good thing to have. I also got away with the red turn signals.

Regarding the front signals you might be right, they most likely had no idea about forscan. Would be nice to figure out, just in case.

OP
OP
GrabThatBlue

GrabThatBlue

Well-Known Member
Joined
Jan 13, 2025
Threads
11
Messages
653
Reaction score
558
Location
Europe
Vehicle(s)
2024 Mustang GT Premium
My Mustang is registered in Switzerland, therefore no EU and not needed. But anyway a good thing to have. I also got away with the red turn signals.

Regarding the front signals you might be right, they most likely had no idea about forscan. Would be nice to figure out, just in case.
Nice, I like the red turn signals more. Not because of the color, but because they don't have that small orange block below the tail lights.


choi

New Member
Joined
Mar 20, 2025
Threads
1
Messages
3
Reaction score
0
Location
korea
Vehicle(s)
mustang s650 / aviator
Can I get youtube address?

OP
OP
GrabThatBlue

GrabThatBlue

Well-Known Member
Joined
Jan 13, 2025
Threads
11
Messages
653
Reaction score
558
Location
Europe
Vehicle(s)
2024 Mustang GT Premium
Today I did some Forscan research and did some changes:

Frost tell tale
IPC 720-01-02 xxxx x*--
Factory setting: CE17 808F
0 =disabled
8 = enabled


Autolock when driving
APIM
7D0-09-01: "xx9x" "xxxx" "xx--"
Factory settings: 6B17 492C AF87
1 = disabled
9 = enabled
IPC
720-01-01: "xxx9" "xxxx" "xx--"
Factory settings: 8F48 2C64 D262
8 = disabled
9 = enabled
BCM
726-19-02: "x1x1" "x1x1" "x1--"
BCM
726-27-01: "xxxx" "xxx1" "xx--"


Remote close Window
APIM
7D0-09-01 xxxx xDxx xx--
Factory settings: 6B17 492C AF87

I Disclaimer:

1. The remote closing of the window didn't work. Even when putting the right adress in APIM.
I guess this feature is not for the Mustang, unless somebody can confirm that he/she can close the window with the remote. This is only about closing the window. Opening the window works and came as a factory setting.

2. I thought I had the Auto Lock feature from the factory, but it seemsthat Canadian Mustangs are treated just like the overseas Mustangs and is disabled from the factory and needs to be enabled with Forscan. Unless it's disabled for everybody. Can someone with a USA Mustang confirm that he has the Auto Lock feature enabled from the factory?

Tomorrow I'm going to change the TSR (Traffic Sign Recognition).
I have the North America TSR and it doesn't work with the European traffic signs.

I will share the Forscan lines when everything is working.

Also I was searching for a way to find out all the country codes, for people who want to change their vehicle to their own country. This can be handy if your language is not available in the language settings. It was a pain in the ass to find what my county code is (The Netherlands) since I have a Canadian Mustang. The only thing I knew was that the country code of:
Canada is 4341
United States 5553

Then I found a very handy tool for people who want to find out what your country code is.

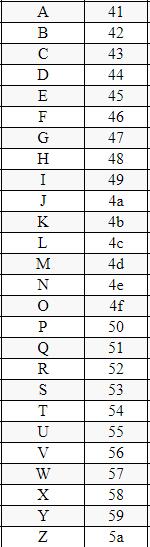

See the picture below to find out what your country code is.

I haven't verified this table, but:
Canada is CA, so the letter C and A makes 4341
United States is US, so the letter U and S makes 5553
This means my country code, The Netherlands is 4E4C

The only strange thing is that there is a forum member @GK292 from Austria (AT), and he said his country code is 4155. But if I use Austria following the table, it should be AT = 4154
The country that has 4155 as a country code is Australia since Australia is AU.
So is this table not correct or did he confuses Austria with Australia?
I hope you can clarify this mystery GK292.

If it was a mistake, then this table is correct and this is how you guys can find out what your country code is. I will test this out in a couple of days after I did all my other Forescan changes with no issues.

Update:
It seems that the country codes are correct, but Ford does not have all the countries working.
For example, people from Australia can't use AU as a country code and they have to use AS (American Samoa), to have theirs working. So yes, the country codes seems to be correct, but if Ford didn't program your country code, it will not work and you have to find another country that fit's your language.

If you want to change the language to your own country you need to change it in all 4 modules:

APIM:
7D0-03-01 **** xxxx xx--
IPC:
720-04-02 **** xx--
TCU:
754-10-01 **** --
GWM:
716-08-01 **** --



S650 Mustang Chefchaouen GT Project (10R80, 401A, PP, AE, NPP, MR, Recaro) Country Codes ForScan

Last edited:
OP
OP
GrabThatBlue

GrabThatBlue

Well-Known Member
Joined
Jan 13, 2025
Threads
11
Messages
653
Reaction score
558
Location
Europe
Vehicle(s)
2024 Mustang GT Premium
I found the list of the country code / region code.

@GK292 was right. His country Austria uses AU and not AT.
This means that Ford doesn't use the ISO code for every country, but their own way to identify the country. This makes it confusing if you don't know the country code that Ford uses for the country you are looking for.

Also if you look in the list, you will find Germany not under DE (Deutschland) but as GM (German Market or Germany)

With this list all the confusion is out of the air.

So again:
- If you want to change the language to your own country you need to change it in all 4 modules:

APIM:
7D0-03-01 **** xxxx xx--
IPC:
720-04-02 **** xx--
TCU:
754-10-01 **** --
GWM:
716-08-01 **** --

Letter 1 (HEX)Letter 2 (HEX)Country CodeCountry NameRegionMap Format
24146AFAFGHANISTANROWNNG
3414CALALBANIAEUTELENAV
44147AGALGERIAROWNNG
5414EANANDORRAEUTELENAV
6414FAOANGOLAROWNNG
74154ATANGUILLAROWNNG
84159AYANTARCTICAROWNNG
94143ACANTIGUA & BARBUROWNNG
104152ARARGENTINAANZTELENAV
11414DAMARMENIAROWNNG
124141AAARUBAROWNNG
134153ASAUSTRALIAANZTELENAV
144155AUAUSTRIAEUTELENAV
15414AAJAZERBAIJANROWNNG
164246BFBAHAMASROWNNG
174241BABAHRAINROWNNG
184247BGBANGLADESHROWNNG
194242BBBARBADOSROWNNG
20424FBOBELARUSEUTELENAV
214245BEBELGIUMEUTELENAV
224248BHBELIZENATELENAV
23424EBNBENINROWNNG
244244BDBERMUDAROWNNG
254254BTBHUTANROWNNG
26424CBLBOLIVIAANZTELENAV
27424BBKBOSNIAEUTELENAV
284243BCBOTSWANNAROWNNG
294252BRBRAZILANZTELENAV
30494FIOBRITISH INDIAN OCEANROWNNG
315649VIBRITISH VIRGIN ISLANDSROWNNG
324258BXBRUNEIROWNNG
334255BUBULGARIAEUTELENAV
345556UVBURKINA FASOROWNNG
354259BYBURUNDIROWNNG
364342CBCAMBODIAROWNNG
37434DCMCAMEROONROWNNG
384341CACANADANATELENAV
394356CVCAPE VERDE ISLANDSROWNNG
40434ACJCAYMAN ISLANDROWNNG
414354CTCENTRAL AFRICA REPUROWNNG
424344CDCHADROWNNG
434349CICHILEANZTELENAV
444348CHCHINACNTELENAV
454B54KTCHRISTMAS ISLANDROWNNG
46434BCKCOCOS ISLANDSROWNNG
47434FCOCOLOMBIAANZTELENAV
48434ECNCOMOROSROWNNG
494347CGCONGO, DEMOCRATIC RROWNNG
504346CFCONGO, REPUBLIC OFROWNNG
514357CWCOOK ISLANDSROWNNG
524353CSCOSTA RICANATELENAV
534852HRCROATIAEUTELENAV
544355CUCUBAROWNNG
554359CYCYPRUSEUTELENAV
56455AEZCZECH REPUBLICEUTELENAV
574441DADENMARKEUTELENAV
58444ADJDJIBOUTIROWNNG
59444FDODOMINICAROWNNG
604452DRDOMINICAN REPUBLICROWNNG
615054PTEAST TIMORROWNNG
624543ECECUADORROWNNG
634547EGEGYPTROWNNG
644553ESEL SALVADORROWNNG
65454BEKEQUATORIAL GUINEAROWNNG
664552ERERITREAROWNNG
67454EENESTONIAEUTELENAV
684554ETETHIOPIAROWNNG
69464FFOFAEROE ISLANDSEUTELENAV
70464BFKFALKLAND ISLANDSROWNNG
71464AFJFIJIROWNNG
724649FIFINLANDEUTELENAV
734652FRFRANCEEUTELENAV
744647FGFRENCH GUIANAROWNNG
754653FSFRENCH SOUTH. ANTARROWNNG
764742GBGABONROWNNG
774741GAGAMBIAROWNNG
784747GGGEORGIAEUTELENAV
79474DGMGERMANYEUTELENAV
804748GHGHANAROWNNG
814749GIGIBRALTAREUTELENAV
824752GRGREECEEUTELENAV
83474CGLGREENLANDROWNNG
84474AGJGRENADAROWNNG
854750GPGUADELOUPEROWNNG
864751GQGUAMROWNNG
874754GTGUATEMALAROWNNG
88474BGKGUERNSEYEUTELENAV
894756GVGUINEA REPUBLICROWNNG
905055PUGUINEA-BISSAUROWNNG
914759GYGUYANAROWNNG
924841HAHAITIROWNNG
93484FHOHONDURASROWNNG
94484BHKHONG KONGCNTELENAV
954855HUHUNGARYEUTELENAV
964943ICICELANDEUTELENAV
97494DIMIM MAN, ISLE OFEUTELENAV
98494EININDIAROWNNG
994944IDINDONESIAROWNNG
1004952IRIRANROWNNG
101495AIZIRAQROWNNG
1024549EIIRELANDEUTELENAV
1034953ISISRAELROWNNG
1044954ITITALYEUTELENAV
1054956IVIVORY COASTROWNNG
1064A4DJMJAMAICAROWNNG
1074A41JAJAPANROWNNG
1084A45JEJERSEYEUTELENAV
1094A4FJOJORDANROWNNG
1104B5AKZKAZAKHSTANEUTELENAV
1114B45KEKENYAROWNNG
1124B52KRKIRIBATIROWNNG
1134B55KUKUWAITROWNNG
1144B47KGKYRGYZSTANROWNNG
1154C41LALAOSROWNNG
1164C47LGLATVIAEUTELENAV
1174C45LELEBANONROWNNG
1184C54LTLESOTHOROWNNG
1194C49LILIBERIAROWNNG
1204C59LYLIBYAROWNNG
1214C53LSLIECHTENSTEINEUTELENAV
1224C48LHLITHUANIAEUTELENAV
1234C55LULUXEMBOURGEUTELENAV
1244D43MCMACAUROWNNG
1254D4BMKMACEDONIAEUTELENAV
1264D41MAMADAGASCARROWNNG
1274D49MIMALAWIROWNNG
1284D59MYMALAYSIAROWNNG
1294D56MVMALDIVE ISLANDSROWNNG
1304D4CMLMALIROWNNG
1314D54MTMALTAEUTELENAV
132524DRMMARSHALL ISLANDSROWNNG
1334D42MBMARTINIQUEROWNNG
1344D52MRMAURITANIAROWNNG
1354D50MPMAURITIUSROWNNG
1364D46MFMAYOTTEROWNNG
1374D58MXMEXICONATELENAV
138464DFMMICRONESIAROWNNG
1394D51MQMIDWAY ISLANDROWNNG
1404D44MDMOLDAVIAEUTELENAV
1414D4EMNMONACOEUTELENAV
1424D47MGMONGOLIAROWNNG
1434D48MHMONSERRATROWNNG
1444D57MWMONTENEGROEUTELENAV
1454D4FMOMOROCCOROWNNG
1464D5AMZMOZAMBIQUEROWNNG
147424DBMMYANMARROWNNG
1485741WANAMIBIAROWNNG
1494E52NRNAURUANZTELENAV
1504E50NPNEPALROWNNG
1514E4CNLNETHERLANDSEUTELENAV
1524E54NTNETHERLANDS ANTILLEROWNNG
1534E43NCNEW CALEDONIAROWNNG
1544E5ANZNEW ZEALANDANZTELENAV
1554E55NUNICARAGUAROWNNG
1564E47NGNIGERROWNNG
1574E49NINIGERIAROWNNG
1584E45NENIUEROWNNG
1594E46NFNORFOLK ISLANDSROWNNG
1604B4EKNNORTH KOREAROWNNG
1614351CQNORTHERN MARIANA ISROWNNG
1624E4FNONORWAYEUTELENAV
1634D55MUOMANROWNNG
164504BPKPAKISTANROWNNG
1655053PSPALAUROWNNG
166504DPMPANAMAROWNNG
1675050PPPAPUAANZTELENAV
1685041PAPARAGUAYANZTELENAV
1695046PFPARCEL ISLANDCNTELENAV
1705045PEPERUANZTELENAV
1715250RPPHILIPPINESROWNNG
1725043PCPITCAIRN ISLANDROWNNG
173504CPLPOLANDEUTELENAV
174504FPOPORTUGALEUTELENAV
1755251RQPUERTO RICOROWNNG
1765141QAQATARROWNNG
1775245REREUNIONROWNNG
178524FROROMANIAEUTELENAV
1795253RSRUSSIAEUTELENAV
1805257RWRWANDAROWNNG
1815643VCSaint Vincent and the GrenadinesROWNNG
1824151AQSAMOAROWNNG
183534DSMSAN MARINOEUTELENAV
1845450TPSAO TOME & PRINROWNNG
1855341SASAUDI ARABIAROWNNG
1865347SGSENEGALROWNNG
1875352SRSERBIA-MONTENEGROEUTELENAV
1885345SESEYCHELLESROWNNG
189534CSLSIERRA LEONEROWNNG
190534ESNSINGAPOREROWNNG
1914C4FLOSLOVAKIAEUTELENAV
1925349SISLOVENIAEUTELENAV
1934250BPSOLOMON ISLANDSROWNNG
194534FSOSOMALIAROWNNG
1955346SFSOUTH AFRICAROWNNG
1964B53KSSOUTH KOREAROWNNG
197424ABJSouth SudanROWNNG
1985350SPSPAINEUTELENAV
1994345CESRI LANKAROWNNG
2005342SBST MAARTENROWNNG
2015348SHST. HELENAROWNNG
2025343SCST. KITTS & NEVROWNNG
2035354STST. LUCIAROWNNG
2045355SUSUDANROWNNG
2054E53NSSURINAMROWNNG
2065356SVSVALBARDROWNNG
2075753WSSWAZILANDROWNNG
2085357SWSWEDENEUTELENAV
209535ASZSWITZERLANDEUTELENAV
2105358SXSX S GEO/S SWADWICROWNNG
2115359SYSYRIAROWNNG
2124650FPTAHITIROWNNG
2135457TWTAIWANANZTELENAV
2145449TITAJIKISTANROWNNG
215545ATZTANZANIAROWNNG
2165448THTHAILANDROWNNG
217544FTOTOGOROWNNG
218544CTLTOKELAUROWNNG
219544ETNTONGAROWNNG
2205444TDTRINIDAD & TOBAROWNNG
2215445TETROMELIN ISLANDROWNNG
2225453TSTUNISIAROWNNG
2235455TUTURKEYEUTELENAV
2245458TXTURKMENISTANROWNNG
225544BTKTURKS & CAICOSROWNNG
2265456TVTUVALUROWNNG
2275547UGUGANDAROWNNG
2285550UPUKRAINEEUTELENAV
2295443TCUNITED ARAB EMIRATEROWNNG
230554BUKUNITED KINGDOMEUTELENAV
2315553USUNITED STATES OF AMERICANATELENAV
2325559UYURUGUAYANZTELENAV
233554DUMUS MINOR OUTLYINROWNNG
2345651VQUS VIRGIN ISLANDSROWNNG
235555AUZUZBEKISTANROWNNG
2364E48NHVANUATUROWNNG
2375654VTVATICAN CITYEUTELENAV
2385645VEVENEZUELAANZTELENAV
239564DVMVIETNAMROWNNG
2405751WQWAKE ISLANDROWNNG
2415746WFWALLIS & FUTUNAROWNNG
2425745WEWEST BANKROWNNG
2435749WIWESTERN SAHARAROWNNG
244594DYMYEMENROWNNG
2455A41ZAZAMBIAROWNNG
2465A49ZIZIMBABWEROWNNG

Last edited:
OP
OP
GrabThatBlue

GrabThatBlue

Well-Known Member
Joined
Jan 13, 2025
Threads
11
Messages
653
Reaction score
558
Location
Europe
Vehicle(s)
2024 Mustang GT Premium
1. Changed my welcome and leaving headlights animation to the Dark Horse style. I REALLY love this setting. The LED's look brighter and they have a light purple color when doing the animation. This is SO GOOD!!

2. Disables the double honk when exiting your car while engine is still running. (This feature is SUPER annoying). You really think the double honk will help when the V8 engine is even louder? 🤣🤣

3. Changed my country region from Canada to The Netherlands and changed the English language to Dutch. While doing this setting now I have tons of languages to choose from, while the Canadian setting only gave me French, English and Spanish.

4. Changed the Traffic Sign Recognition from North America to Europe. Now my car recognizes the European red circle traffic signs.

5. Drove around the island and I had a light green/yellow 2020 S550 Ecoboost convertible in front of me with American or Russian girls inside. I needed to rev my engine a little to let them know who the real Mustang is. A blond girl in the back seat immediately reacted, making hand gestures to let me know I had to rev it again and again and again. Drove for like 15 minutes behind them since this island has practically only 1 road with a lot of traffic. She flashed her bxxbs 3 or 4 times while driving behind her. I guess this is the first time my Mustang made girls flash their bxxbies.

6. Did a small photoshoot near the courthouse.
S650 Mustang Chefchaouen GT Project (10R80, 401A, PP, AE, NPP, MR, Recaro) 20250413_160520
S650 Mustang Chefchaouen GT Project (10R80, 401A, PP, AE, NPP, MR, Recaro) 20250413_160701
S650 Mustang Chefchaouen GT Project (10R80, 401A, PP, AE, NPP, MR, Recaro) 20250413_145907

S650 Mustang Chefchaouen GT Project (10R80, 401A, PP, AE, NPP, MR, Recaro) 20250413_152817
Sponsored











Top
